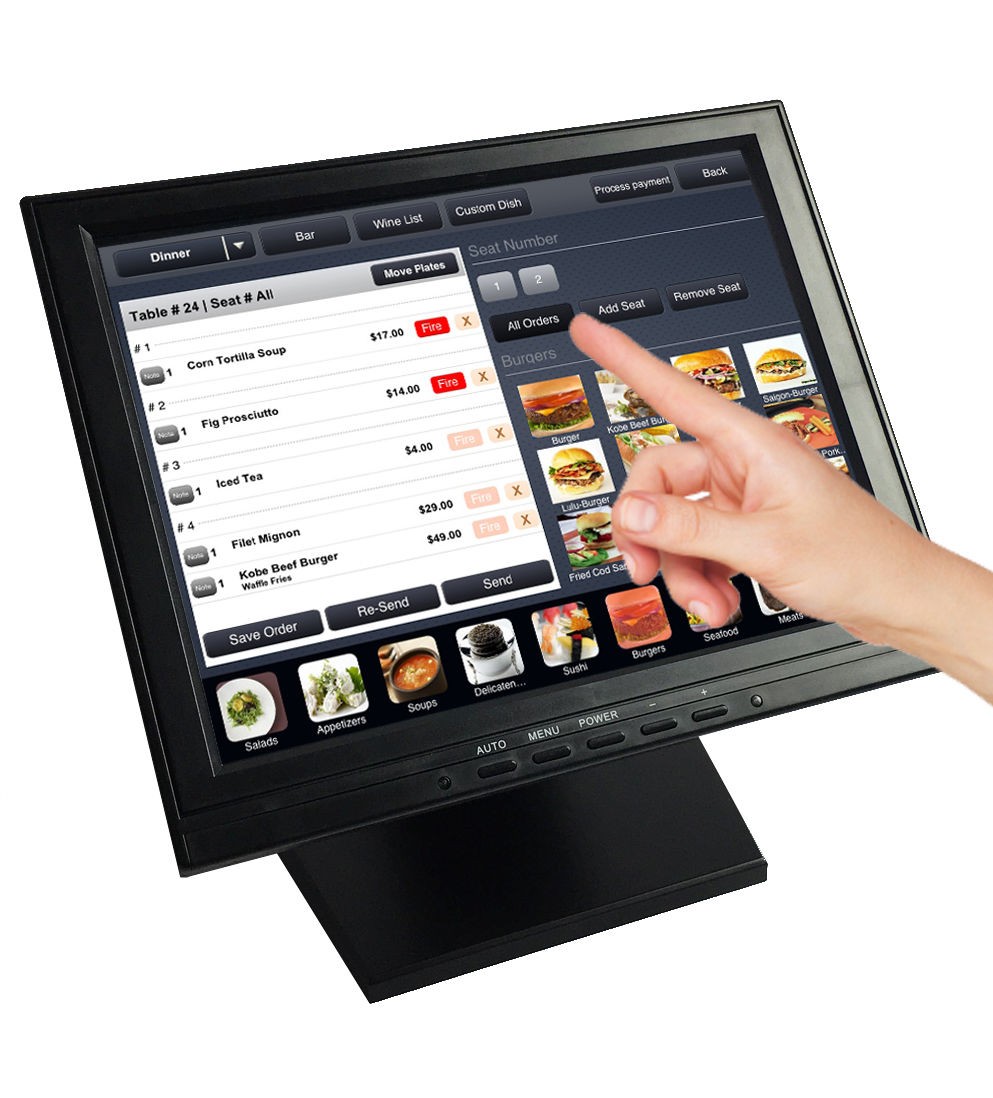

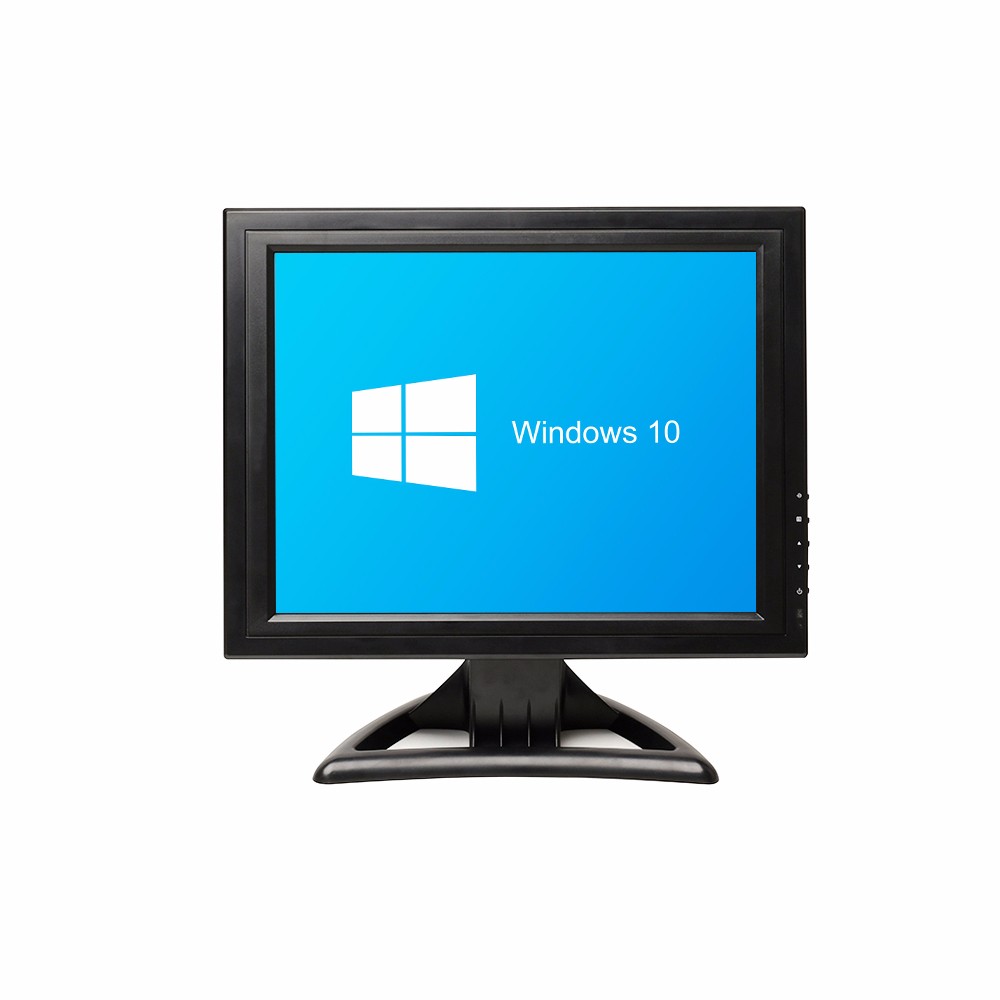

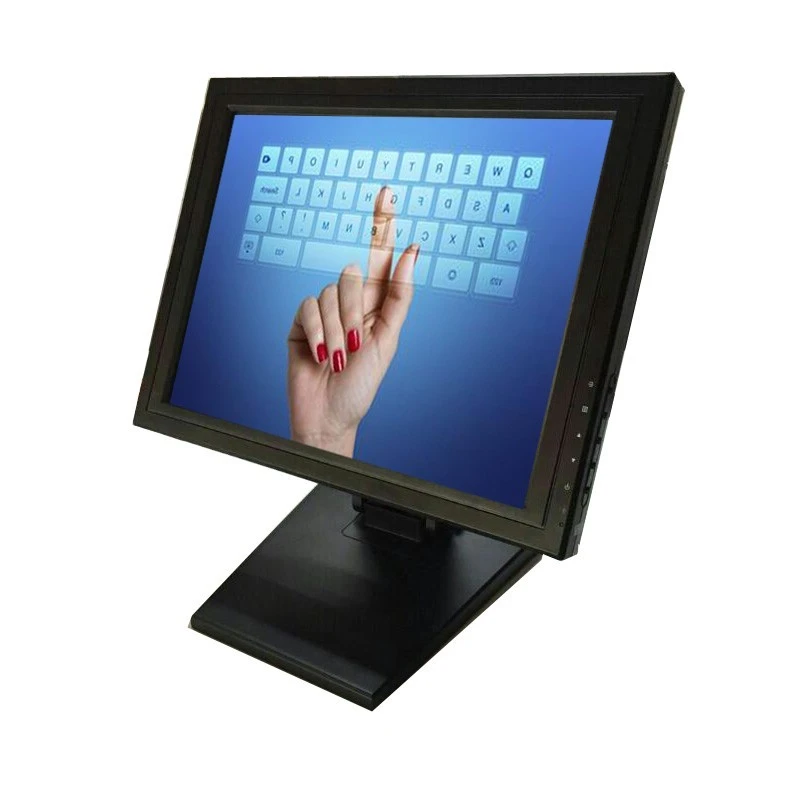

Wholesale OEM LCD touch screen pos 15 inch monitor
OTM-1501
1 piece
Shenzhen/HK
Quantity
- Screen Size:15"
- Type:Resistive
- Interface Type:D-SUB, DVI, Serial, usb, hd,bnc
- Resolution:1024 X 768, 1024*768
- Brand Name:OEM
- Place of Origin:Guangdong, China
- Products Status:Stock
- Product name:15 inch resistive Touch Screen Monitor
- Brightness:250cd/m2
- Application:ATM.POS.Open Frame Machine ...etc
- Contrast Ratio Typically:500:1
- Operating System:Win 7/Win8/Win10/Liunx
- Input:VGA( HD/AV/TV is optional)
- Size:15inch
- Color:Black
- Certificate:CE,ROHS
Product Description
Wholesale OEM LCD touch screen pos 15 inch monitor
Name | OEM LCD PC Display 15 inch Industrial Touch Screen Monitor |
Display area | 304*228mm |
Standard Resolution | 1024*768 |
Number of Colors | 16.2M |
Brightness | 250cd/m2 |
Response time | 5ms |
View angle | Horizontal:160° |
Vertical:140° | |
Contrase ratio | 20.83402778 |
Video input format | (analog) RGB |

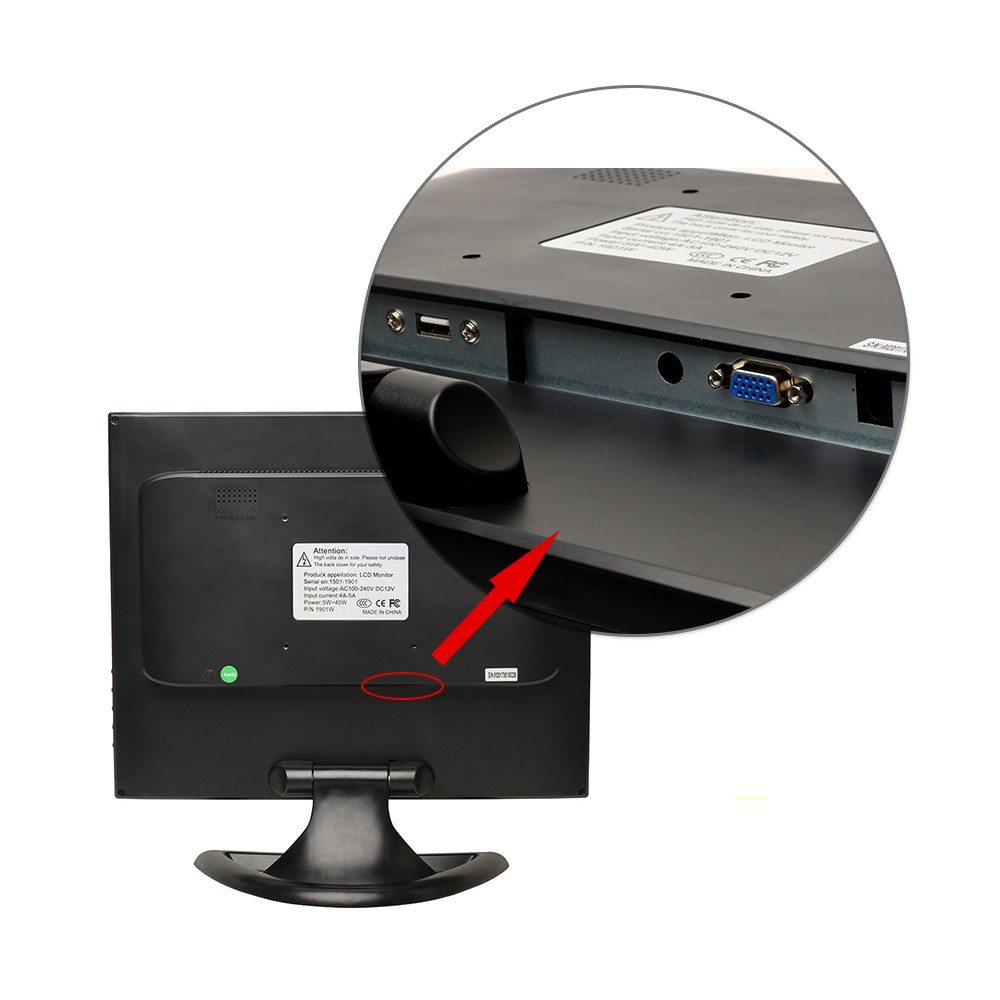

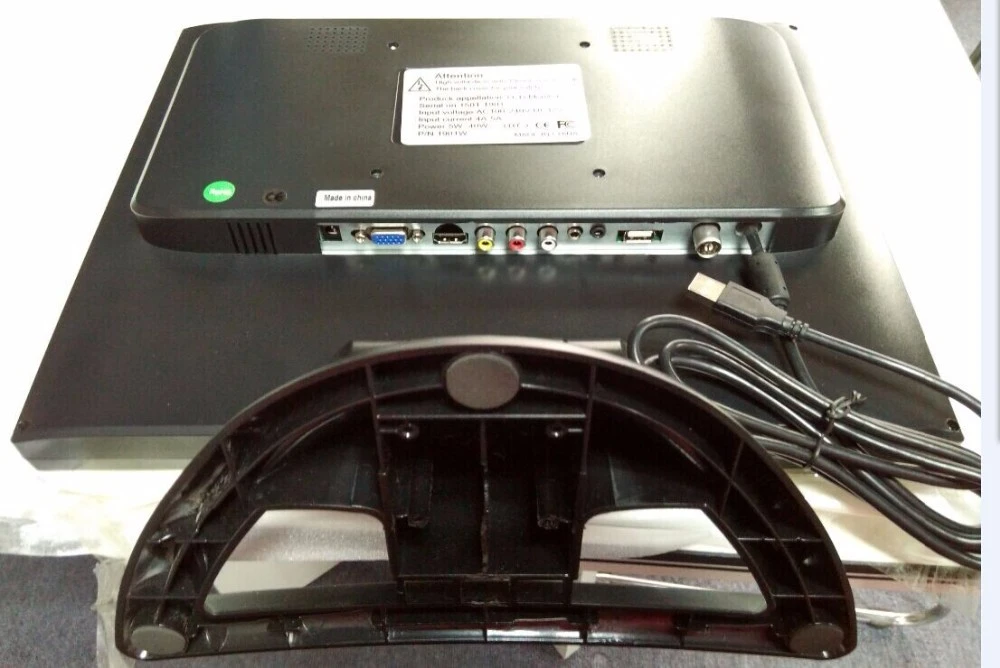

Connector | VGA for video signal |
USB (or RS232) for touch | |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V (DC 12V) |
Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
Touch model | 5 or 5 wire resistive touch or capacitive touch |
Optional | (5-wire resistive touch,SAW,Infrared touch optional) |
Duration | 50000hours |
touch validity | >1,000,000 |
Net weight | 6.0 Kgs/pcs,include stable mental base |
Gross weight | 6.5 Kgs/pcs,include stable mental base |
Power consumption | Max 30W |
Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |

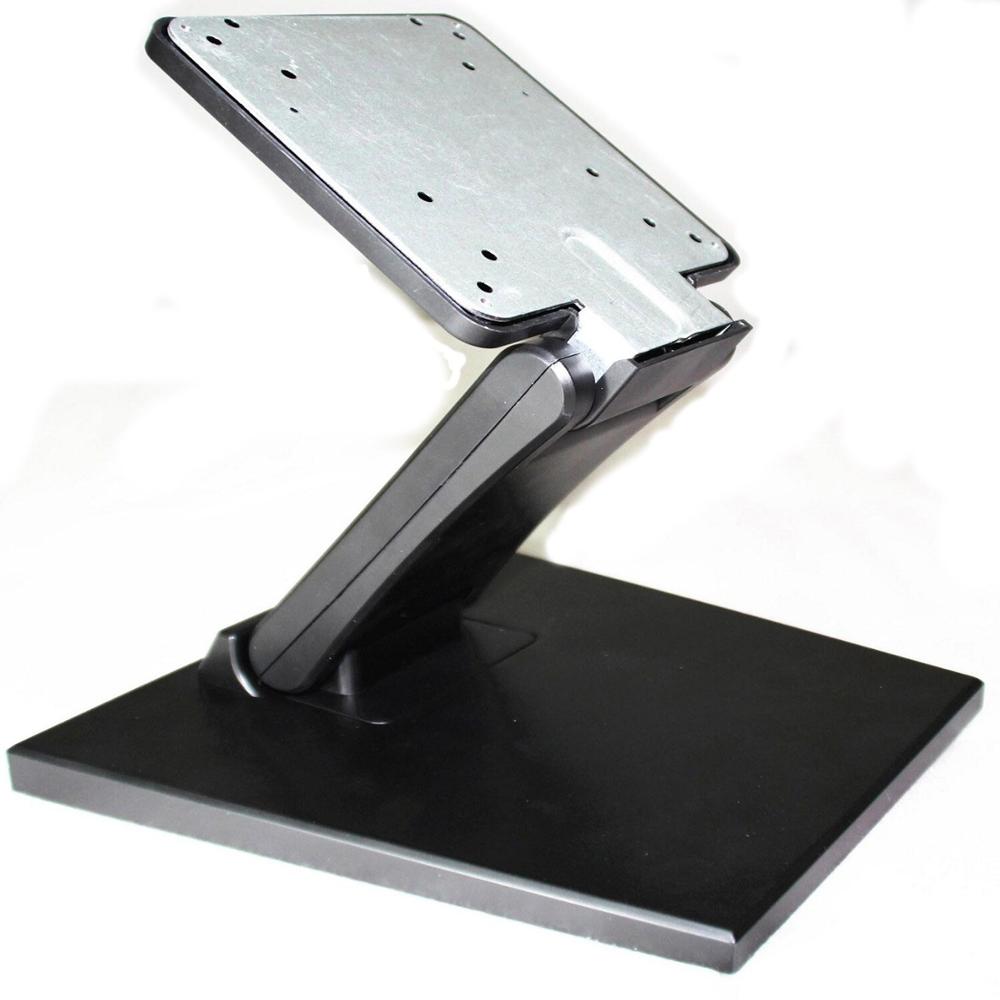

2) provide stable mental base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function, Install,reset | |
Touch interface | USB or RS232 optional |
Touch response time | 2ms |
Certificate | CE, ROHS |
Warranty | 1-2 years,provide spare parts |

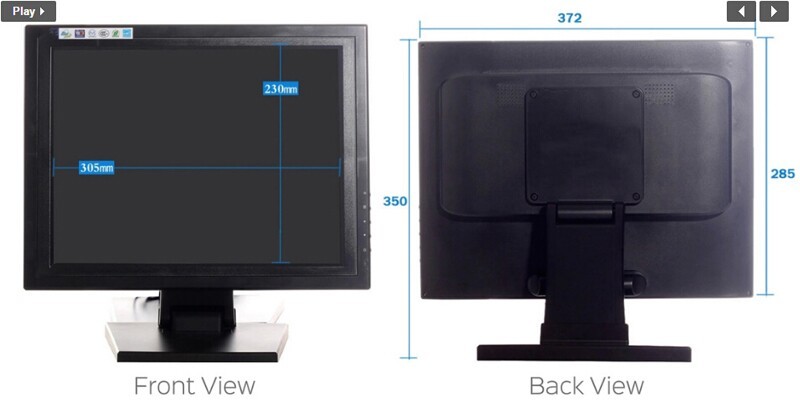

Monitor size(not include base) | 375*285*55mm |
Each unit box size | 420*370*155mm |
Package size | 2pcs in a carton |
Operation system | Windows,Linux,Mac.  |

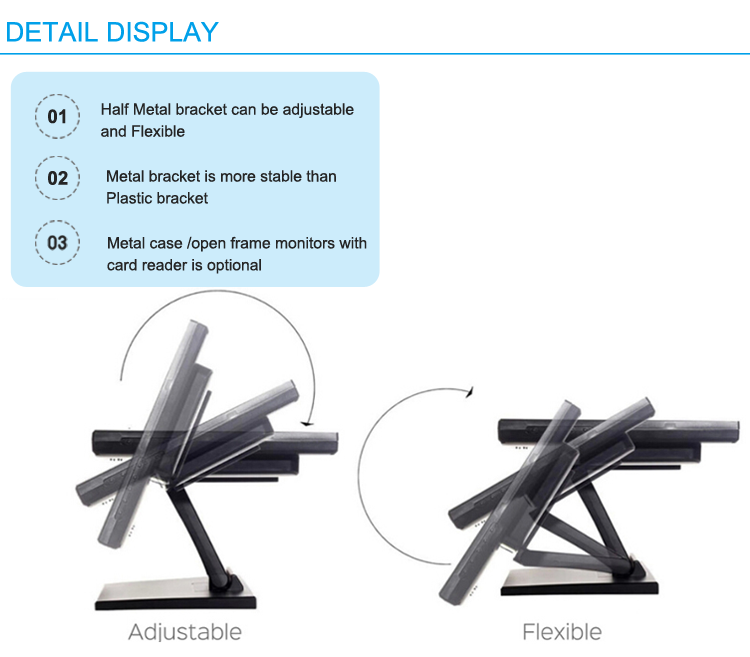

Half metal
