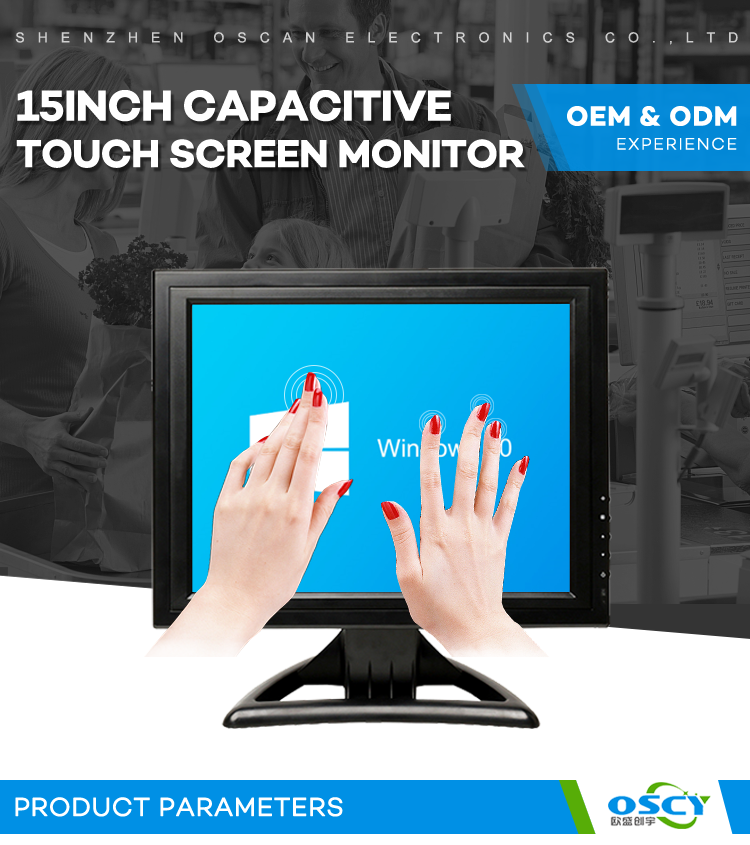

Original 15" LCD Panel Screen for HP/Dell All in one
OTM-1500
1 piece
Shenzhen
Quantity
  • Warranty(Year):1-Year
  • Color:Black
  • Display Ratio:4:3
  • Series:For Business
  • Aspect Ratio:4:3
  • Screen Type:LCD
  • Built-in Speaker:No
  • After-sales Service:Call Center and on-line Technical Support
  • Products Status:New
  • Application:Desktop
  • Response Time:8ms
  • Brightness:300cd/m, 300cd/m2
  • Interface Type:RS232C, TV-out, VGA/BNC/AV/HD/USB, HD
  • Contrast Ratio:500:1, 500:1
  • Widescreen:Yes
  • Panel Type:TFT, Au
  • Brand Name:OSCY
  • Place of Origin:Guangdong, China
  • Feature:Touch Screen
  • Use:Industrial
  • speaker:optional
  • Backlight:LED
  • OSD Languages:8 Languages
  • power supply:DC12V -24V
  • color:black
  • ratio diaplsy:4:3
  • Certification:ce, RoHS

Contact Vici 1

Key Specification
LCD panel:Samsung/AU industrial panel
Working Voltage:DC 12V
Working Temperature:-10~60°
Screen size:15 inches (4:3 diagonal)
Resolutions:1024(H)×768(V)
System ParametersDot pitch:0.107(H) ×0.372(V)mm
TV Receive System:PAL/ NTSC/SECAM wide
application range
Brightness:300cd/m2
Contrast:

500:1

Power consumption:≤ 30W
Scanning Frequency:60-75Hz
Color:16.7M
Full Function Touch Panel for PC

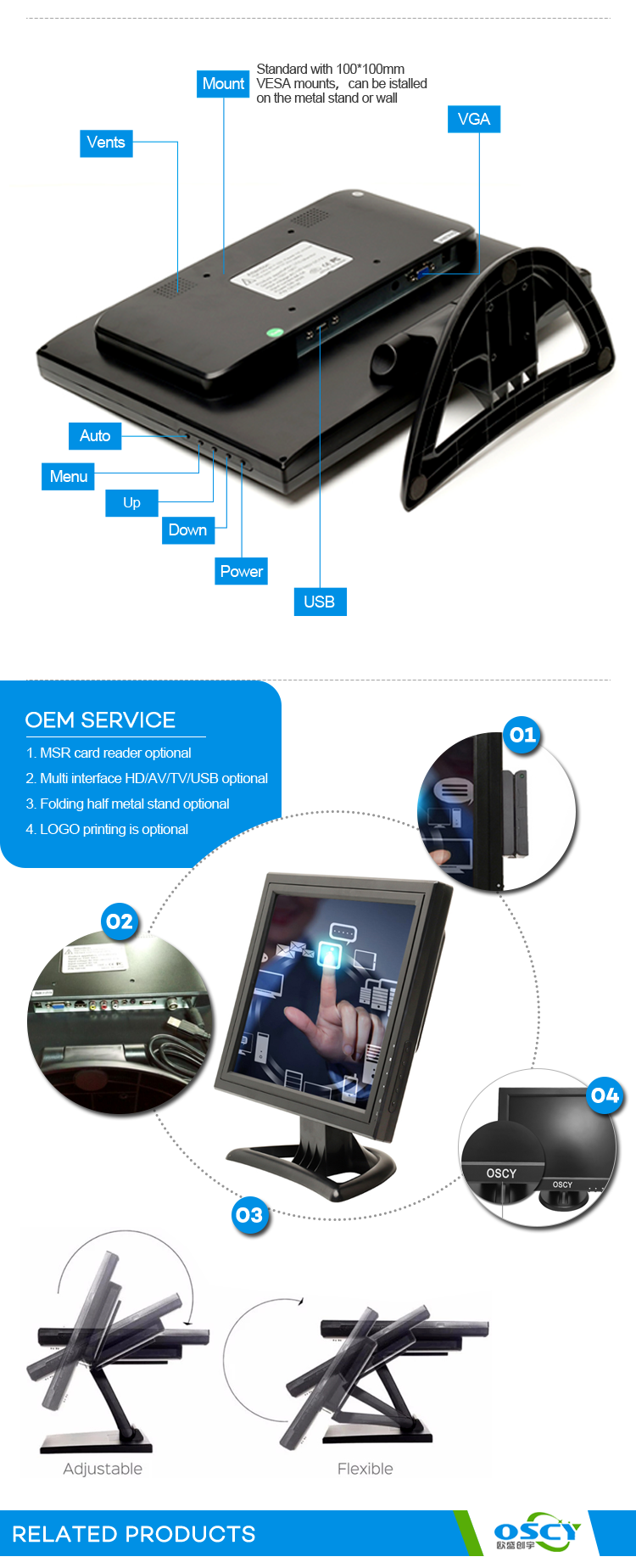

VESA metal Stand Optional
Product functionsVGA Port(HD+AV+TV+USB Optional)
The Highest Resolution is to 1024×768
Operated System is WIN9X,2000,ME,CE/UNIX Support
WIN9X,2K,XP,CE,UNIX
Touch Type:Capacitive touch
Touch Interface:USB (RS232 is optional)
Touch functionTouch Response Time:8ms
Touch Sensitivity:Fixed
Touch Pen Hitting Life:>= 1milions times
1pcs LCD Monitor
1pcs Stand Shelf
1pcs VGA Cable
Accessories1pcs Instruction Manual
1pcs AC/DC Power
Some Screw for Fixing the Shelf
