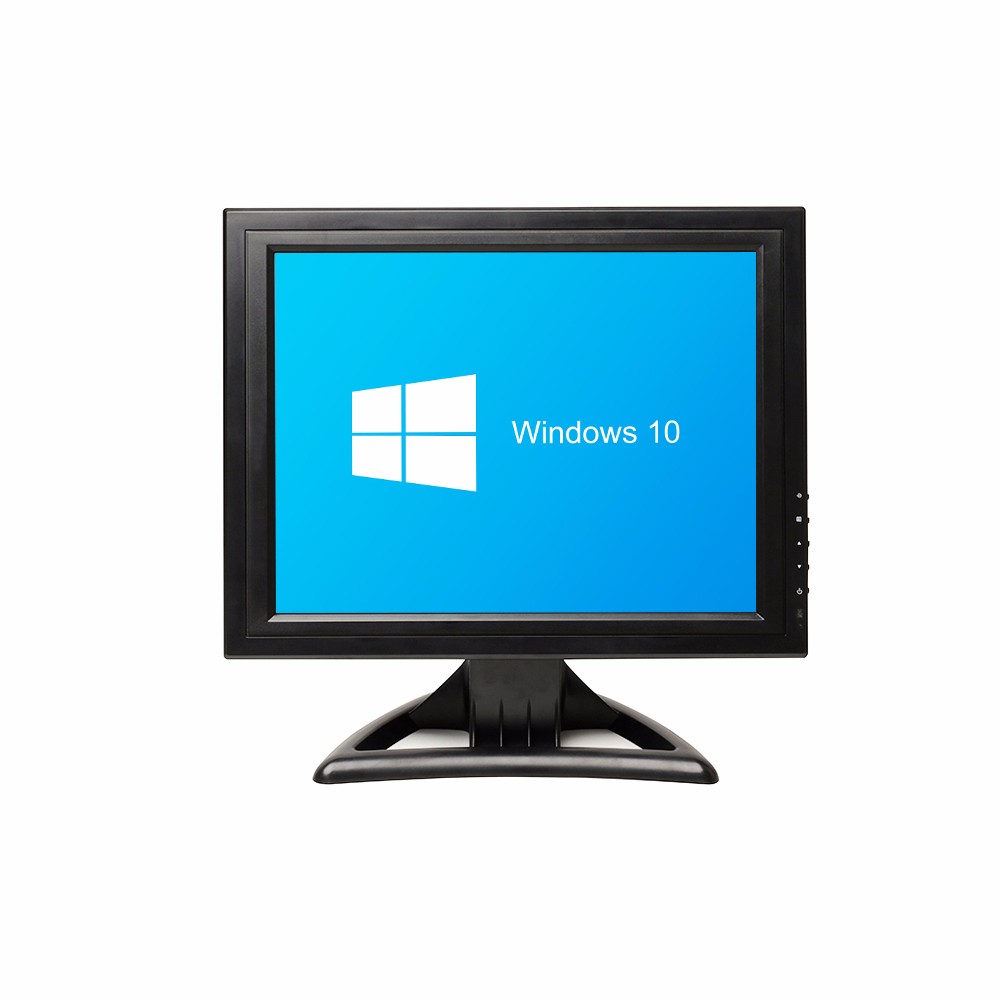

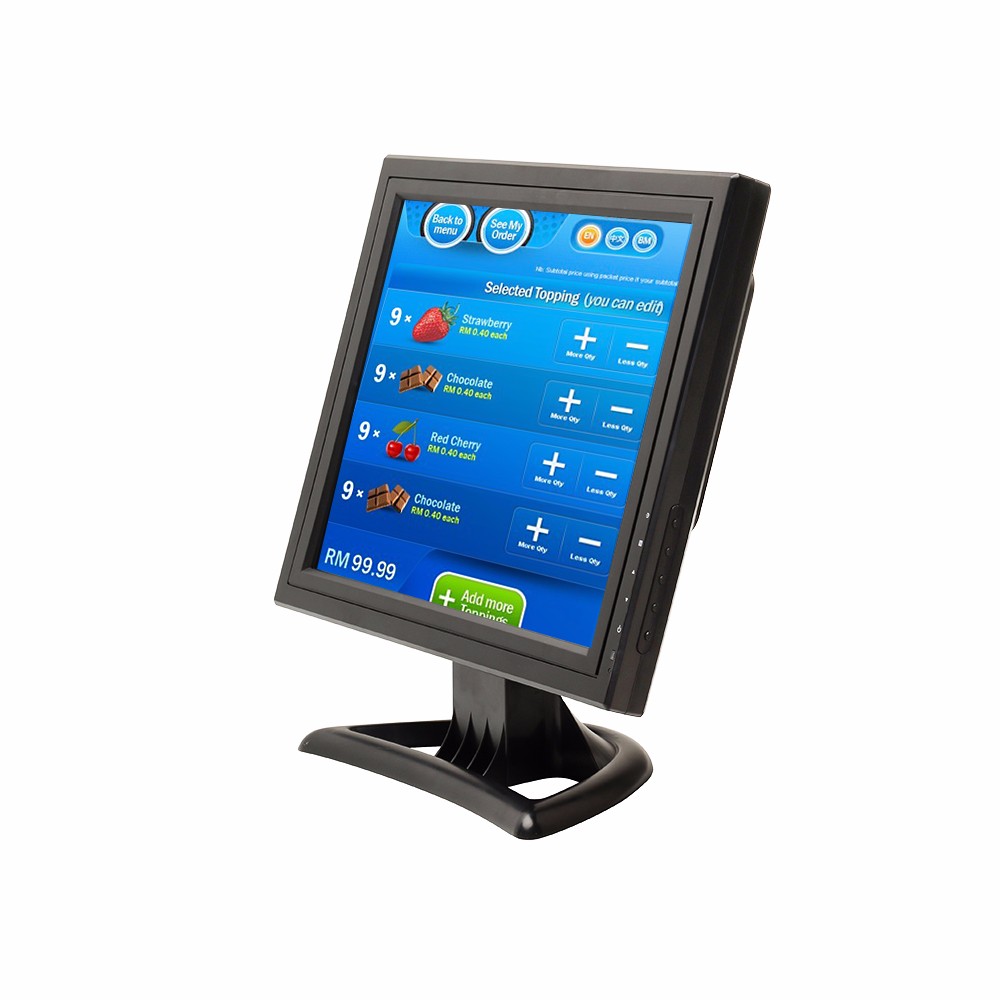

1024*768 resolution 15 inch raspberry pi touch screen monitor
OTM-1501
1 piece
Shenzhen/HK
Quantity
- Warranty(Year):1-Year
- Color:Black, Black/White
- Package:Yes
- Series:For Business
- Aspect Ratio:4:3
- After-sales Service:Call Center and on-line Technical Support, Free spare parts, Repair
- Products Status:New
- Type:Resistive
- Interface Type:D-SUB, DVI, Serial, usb, hd/bnc
- Brand Name:OEM
- Place of Origin:Guangdong, China
- Product name:15 inch resistive Touch Screen Monitor
- Application:ATM.POS.Open Frame Machine ...etc
- Interface:USB/RS232 Serial
- Operating System:Window 7/8,Liunx
- Touch Screen:Resistive (capacitive touch optional)
- Size:15inch
- Brightness:300cd/m2
- resolution:1024*768
- Certification:RoHS/ISO9001/ce
Product Description

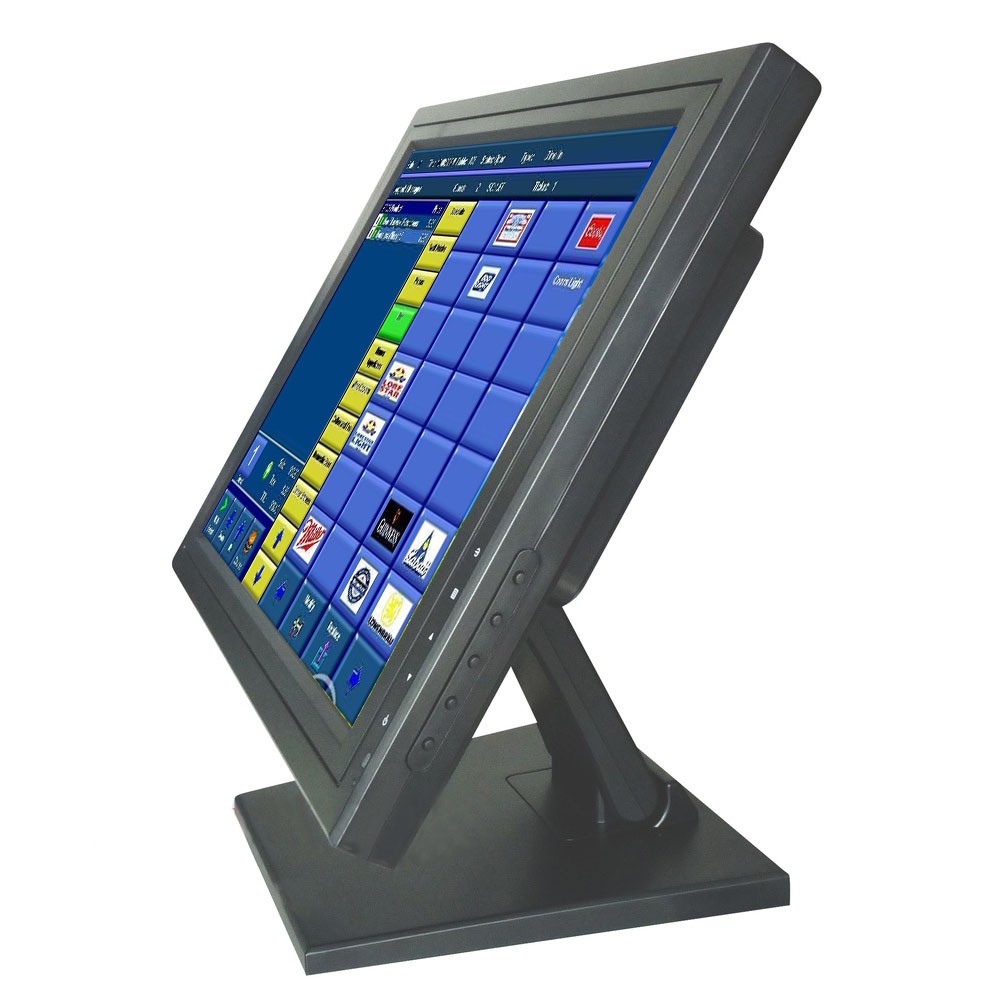

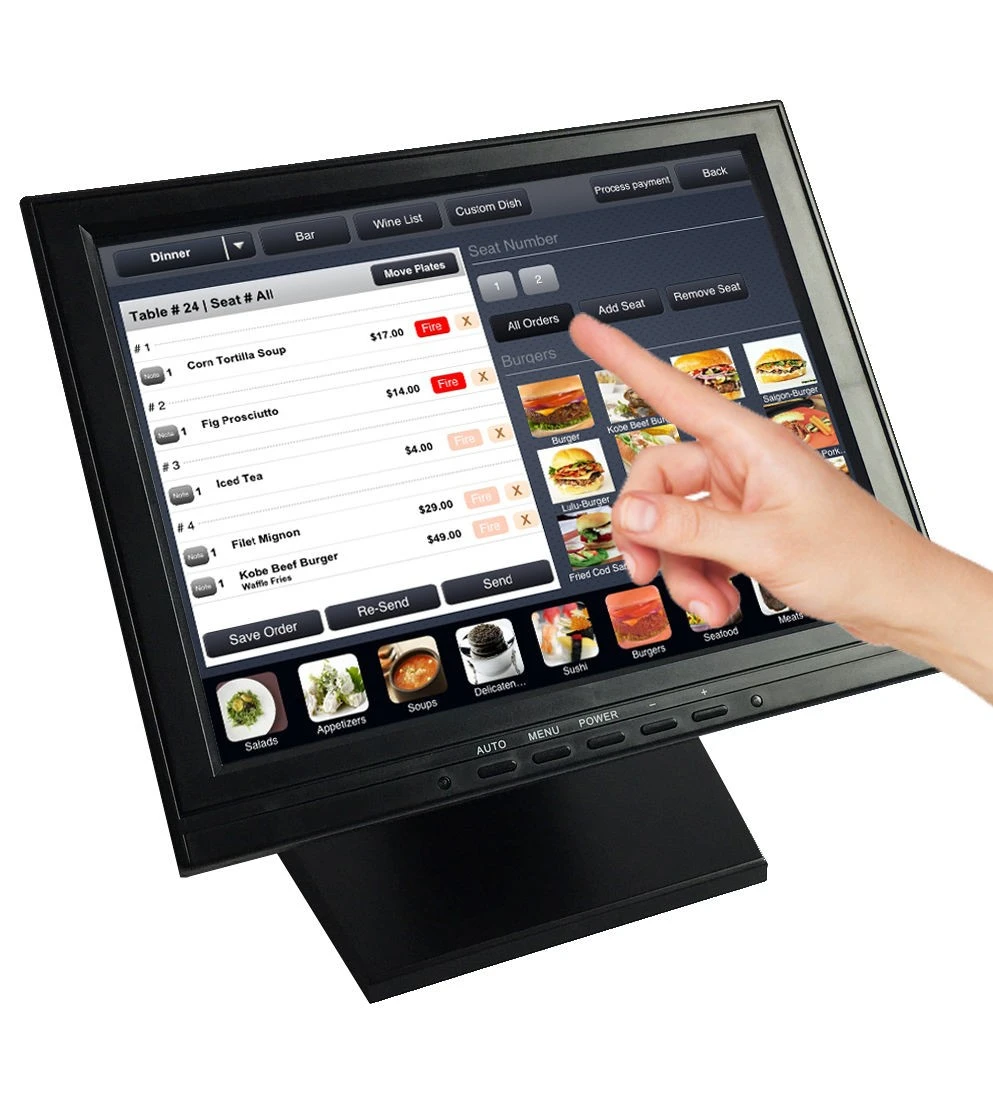

1024*768 resolution 15 inch raspberry pi touch screen monitor
Name | OEM LCD PC Display 15 inch Industrial Touch Screen Monitor |
Display area | 304*228mm |
Standard Resolution | 1024*768 |
Number of Colors | 16.2M |
Brightness | 300cd/m2 |
Response time | 5ms |
View angle | Horizontal:160° |
Vertical:140° | |
Contrase ratio | 20.83402778 |
Video input format | (analog) RGB |

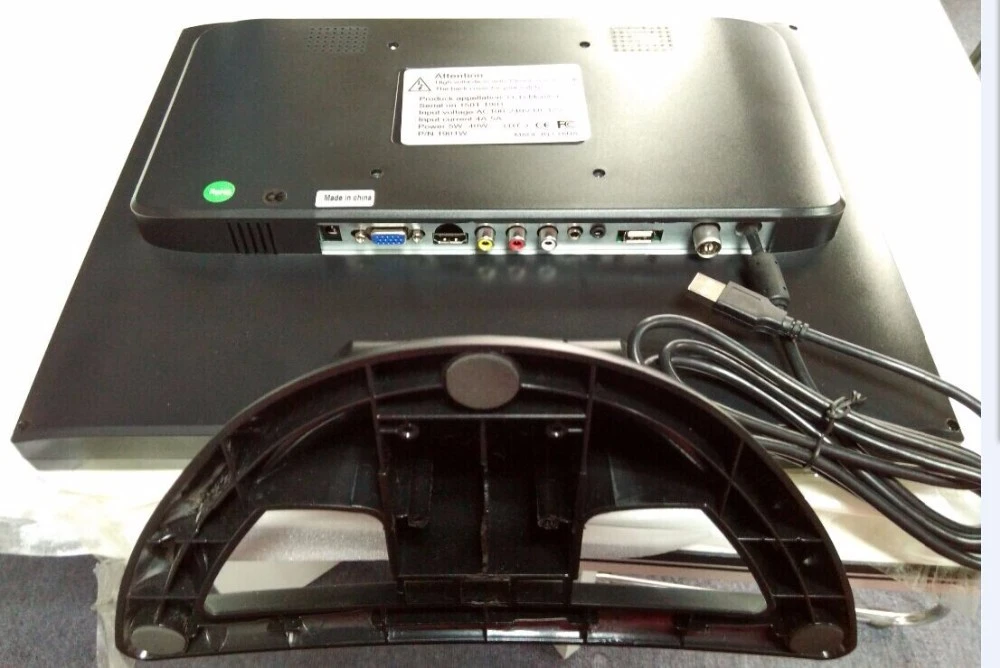

Connector | VGA for video signal |
USB (or RS232) for touch | |
Frequency | 30~80KHz/60~75Hz |
Power supply | External Power Supply:100 to 240V (DC 12V) |
Operation Environment | Workable Temperature:-10 to 60°C Storage temperature:-20 to 70°C |
Operate relative humidity:20% to 80%;storage relative humidity:10% to 90% | |
Touch model | 5 or 5 wire resistive touch or capacitive touch |
Optional | (5-wire resistive touch,SAW,Infrared touch optional) |
Duration | 50000hours |
touch validity | >1,000,000 |
Net weight | 6.0 Kgs/pcs,include stable mental base |
Gross weight | 6.5 Kgs/pcs,include stable mental base |
Power consumption | Max 30W |

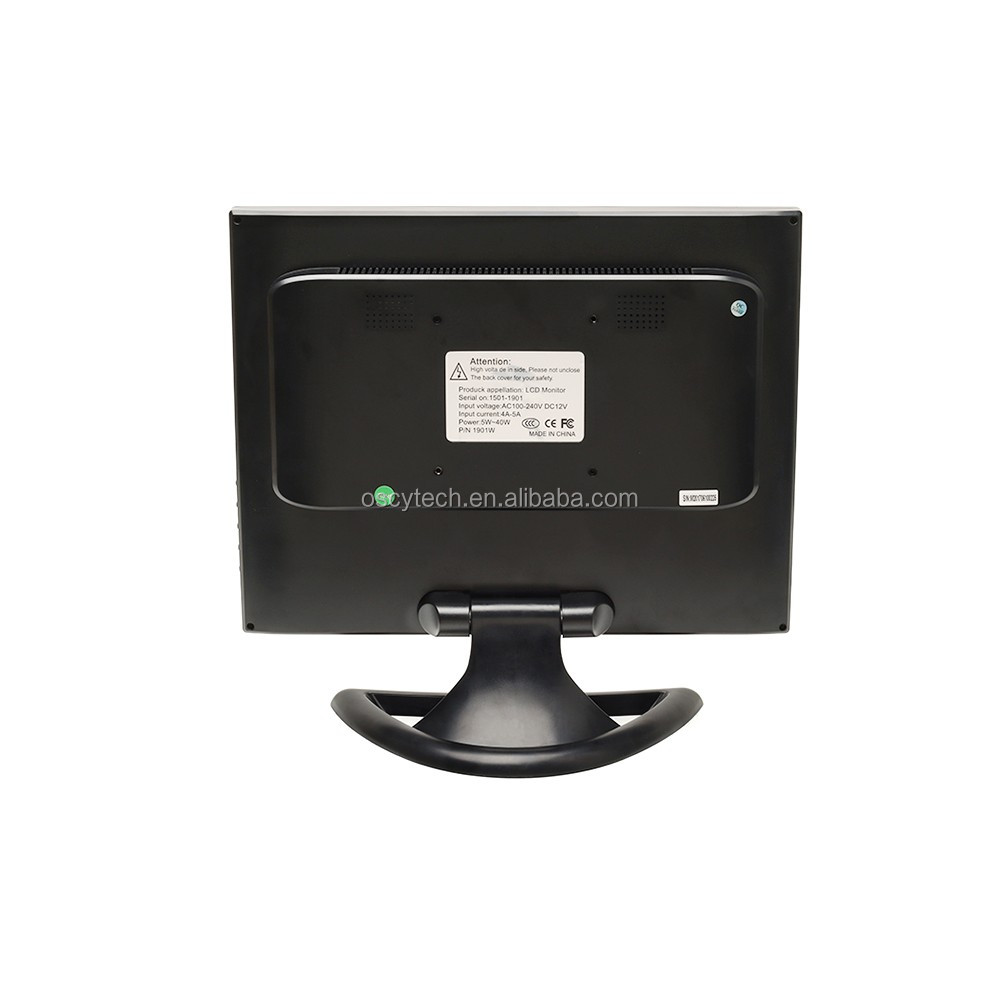

Setup (optional) | 1) provide wall brackets for wall-mounting, VESA 75mm&100mm |
2) provide stable mental base to support the monitor | |
OSD control | AUTO,+,POWER,-,MENU |
brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function, Install,reset | |
Touch interface | USB or RS232 optional |
Touch response time | 2ms |
Certificate | CE, ROHS |
Warranty | 1-2 years,provide spare parts |

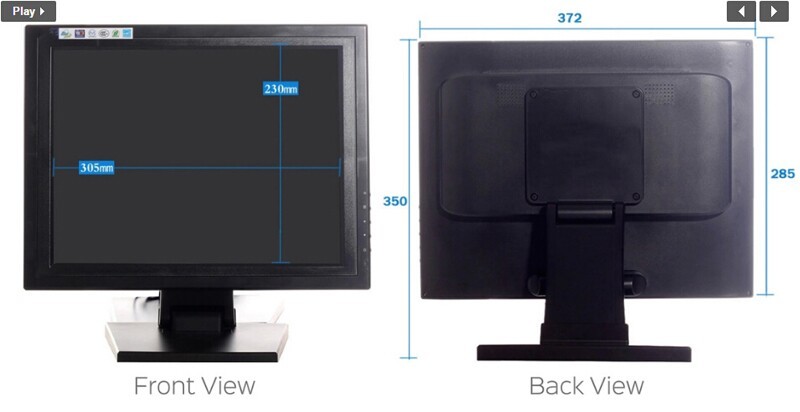

Monitor size(not include base) | 375*285*55mm |
Each unit box size | 420*370*155mm |
Package size | 2pcs in a carton |
Operation system | Windows,Linux,Mac. |
